600kg/h Fully Automatic Gummy / Jelly Candy Production Line – High-Volume Turnkey Solution for Functional Nutraceutical Gummies

This fully automatic production system integrates precise raw material and auxiliary weighing, water-sugar syrup preparation, active ingredient metering, and automated dosing — all customizable to your specific capacity, process, and automation level requirements.

YT brings proven project execution expertise, long-term partnerships with leading brands, and dedicated process engineers offering full technical support. We provide complete turnkey engineering solutions for complex functional and health-oriented gummies — including creatine gummies, probiotic gummies, vitamin-enriched soft candies, and other nutraceutical varieties.

Table of Contents

Key Advantages of YT Gummy Production Lines

Complete End-to-End Automation: Raw material weighing, syrup cooking, and precise active ingredient integration — fully automated from start to finish.
Ultra-High Precision Control: Stable, accurate dosing of every component guarantees uniform quality across every gummy batch.
Maximum Flexibility: Equipment configurations tailored precisely to your production goals, recipe complexity, and budget.
Proven Capability for Complex Recipes: Effortless high-volume production of creatine, probiotics, vitamins, and other sensitive functional formulations.
Regulatory-Ready Compliance: Built to meet GMP, FDA, and multiple international food safety standards.
True Turnkey Delivery: One-stop service including design, installation, commissioning, operator training, and ongoing after-sales support.

Choose YT to make your functional gummy manufacturing smarter, more consistent, and fully compliant with global standards.

If you’re new to gummy production equipment, this overview will guide you to the ideal setup. Standard metal mold depositing lines perform best with pectin, gelatin, or carrageenan as main gelling agents. For modified starch-based or low-gel recipes, we recommend a starch mogul line for superior compatibility and results.

Essential Gelling Agents Comparison

Pectin

Source: Citrus peels, apple pomace, and other plant materials.
Advantages: Vegan-friendly, heat-resistant, refreshing non-sticky mouthfeel.
Disadvantages: Requires precise sugar/acid control; more demanding process.
Drying: 35–50°C for 12–24 hours.

Gelatin

Source: Animal bones and skins.
Advantages: Classic soft, Q-bouncy, melt-in-mouth texture; highly stable and versatile recipes.
Disadvantages: Animal origin; heat-sensitive with strict temperature control.
Drying: 25–30°C for 24–45 hours.

Carrageenan

Source: Red algae and other marine plants.
Advantages: Plant-based, rapid strong gel formation, excellent clarity.
Disadvantages: Slightly brittle feel; often needs blending; prone to water separation.
Drying: 18–40°C for 18–30 hours.

Different gelling agents and recipes require specialized cooking setups and affect depositing performance.

Pectin Cooking & Preparation

Pectin cooking is complex in control but uses simple equipment thanks to its heat tolerance — small batches allow combined sugar-pectin cooking. YT systems feature homogenizers for uniform dispersion; high-speed mixing can introduce bubbles, so vacuum cooking or degassing is recommended for top quality (budget permitting), followed by flavor/color addition.

Entry-level: Electric jacketed kettles with homogenizer — simple, safe (insulated outer layer), jacket-heated.
High-efficiency: Steam heating for rapid, large-scale production.

Gelatin Cooking & Temperature Management

Gelatin is sensitive to high heat (degradation or premature setting), requiring a cooling step. After sugar syrup preparation, add a cooling tank to lower temperature before incorporating pre-dissolved gelatin. Small-scale: prepare gelatin overnight to save labor. Larger-scale: integrate weighing and chilled water systems for efficiency.

Unsure which gelling agent to choose — especially for OEM/private label? YT provides versatile piping and design adaptations for multi-gelling balance. Contact us now for expert consultation.

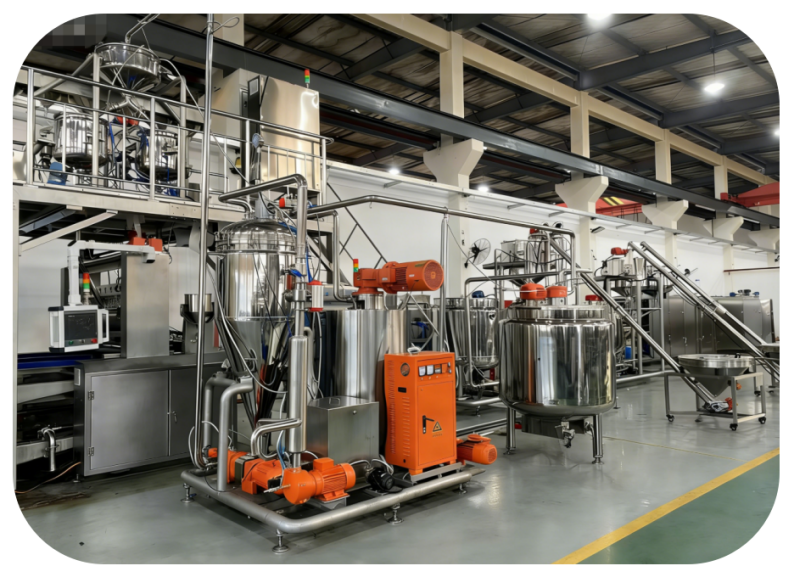

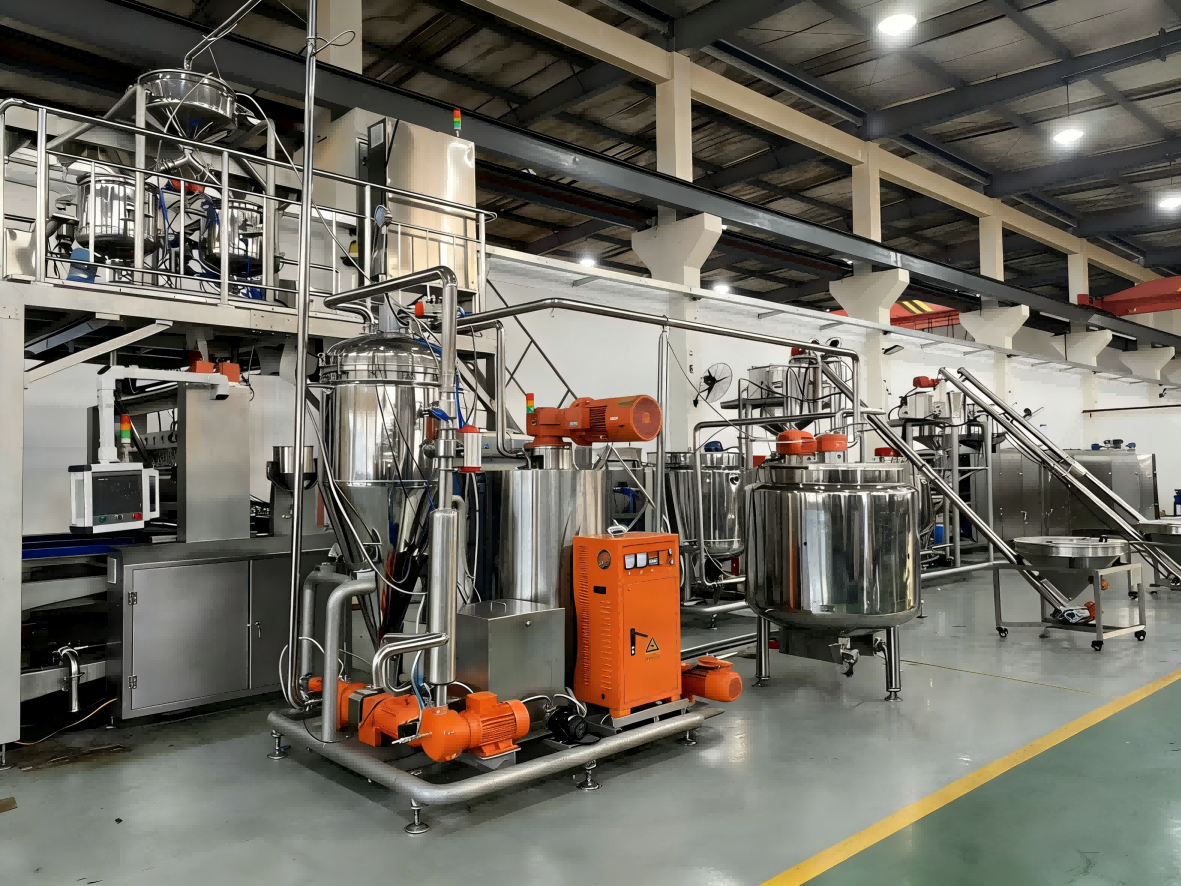

Automatic Weighing & Syrup Cooking

The simplest yet most critical step: dissolve white sugar in water and cook to target Brix. YT’s automatic weighing system accurately meters liquids and powders with METTLER TOLEDO scales, plus intelligent PLC for recipe programming and visual process monitoring.

Rising Film Continuous Cooker

Fully automatic continuous rising film evaporation system for consistent high-Brix syrup — no batch changes, perfect for continuous lines.

Process: Bottom feed into vertical tubes (steam/thermal oil jacket); boiling vapor rises at high speed, forming thin 0.1–1 mm film; extreme heat transfer efficiency with seconds-long residence — ideal for pectin.

Highlights:

Metering pump + preheater for stable entry.
Vertical tube bundle (aspect ratio 100–150).
Vacuum operation protects heat-sensitive ingredients.
Optional scraper to avoid scaling.
PLC + touchscreen precise control.
3–5× faster than batch methods.
Suitable for vitamins, CBD/THC, juices.
300–1000 kg/h stable output; 30%+ energy savings.

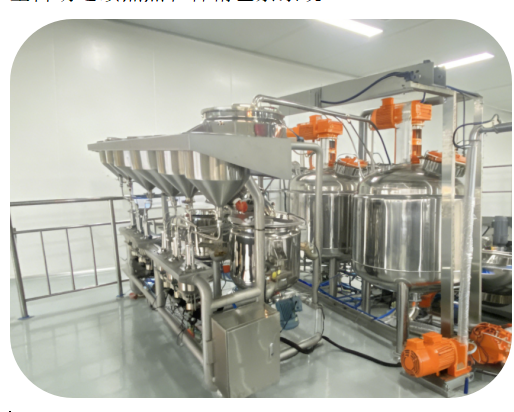

Automatic Precision Flavor/Color/Active Dosing & Mixing

Struggling with inaccurate manual micro-dosing of flavors, colors, acids, or nutrients causing flavor drift and inconsistencies?

YT separates weighing of cooked syrup and actives, then batch-mixes — zero manual contact. LC + touchscreen + recipe management delivers clean, error-free, dust-free results. Precision levels: 0.01g / 0.1g / 1g; optional insulated/stirred tanks for pre-emulsification.

Benefits:

Eliminates dosing errors completely.
200% variance reduction vs. conventional systems.
Identical color, flavor, and active levels batch-to-batch.
GMP-compliant, hygienic, dust-free.
Traceable data for easy audits.
Saves 2–3 operators per line.

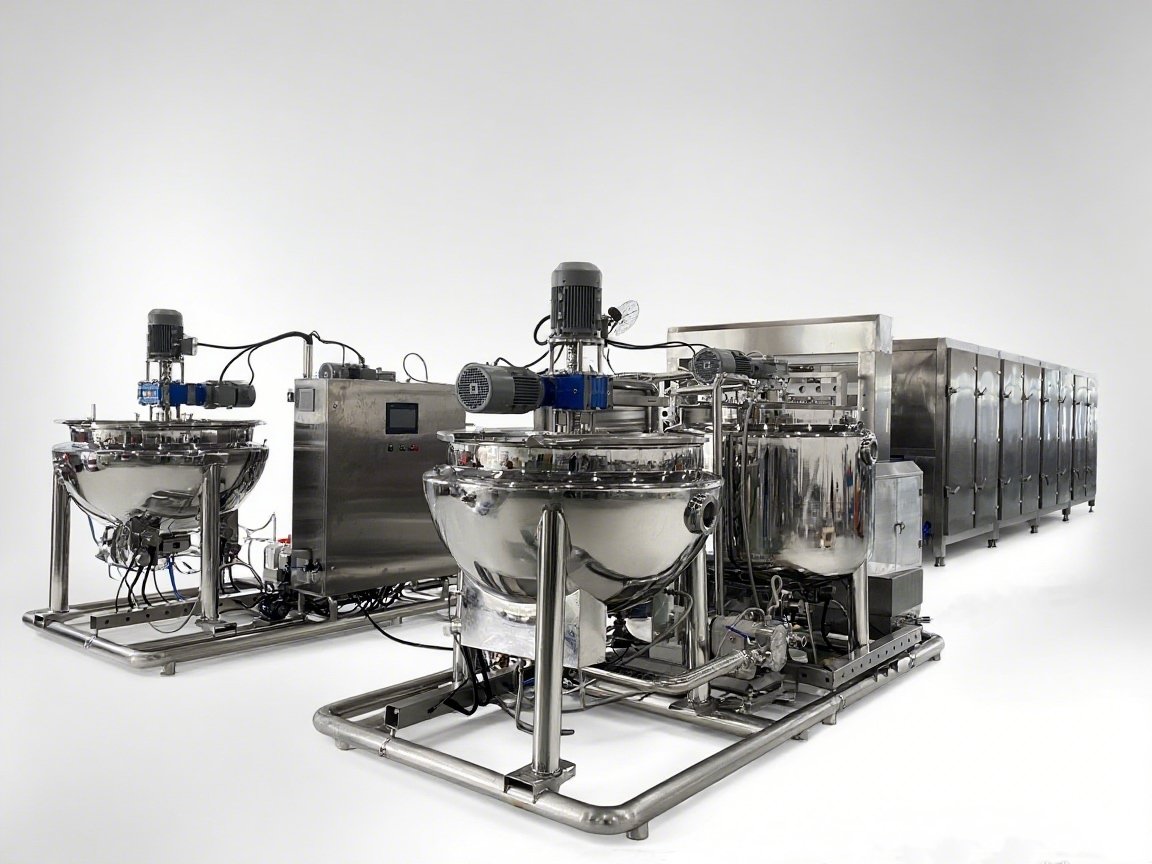

600kg/h Fully Automatic Metal Mold Depositing Production Line

600kg/h capacity with PLC full automation and continuous metal mold depositing. Seamlessly integrates with auto weighing/cooking, rising film cooker, and precision dosing — achieving complete automation from raw materials to finished product.

Key features:

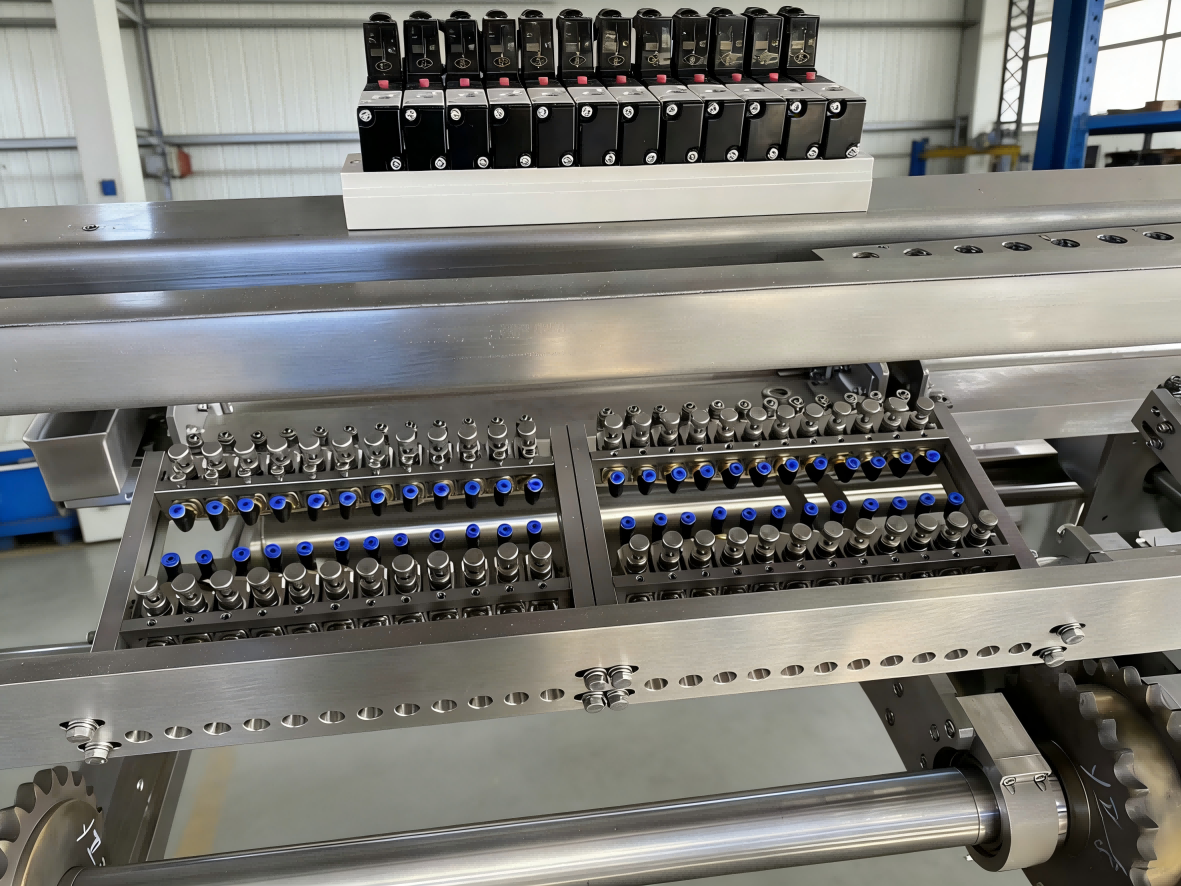

Servo Depositing Head: Dual/multi-hopper for single-color, two-color, center-filled, or swirled depositing.
80–160 nozzles, 30–55 cycles/minute for high throughput.
Food-grade aluminum alloy / stainless steel or silicone molds; quick-release clamps for rapid shape switching.
Automatic atomized oil spray system for anti-stick, smooth demolding.
Advanced servo screw depositing with variable frequency control for exact, stable fill weights.
Full-coverage cooling tunnel (0–10°C adjustable); upgradable to multi-layer or extended length for gelatin or heavier gummies.
Multi-stage demolding: pneumatic ejection + flip, air knives, roller brushes — zero damage or sticking.
Intelligent touchscreen: 100+ recipe storage, one-key recall, visual workflow, error diagnostics, remote upgrades.
Closed-loop temperature/speed/weight control for error-proof, traceable production.
CIP one-key automatic cleaning — fully GMP compliant.

Frequently Asked Questions

Q: What is the footprint of the complete line?
A: Total length ≈20–22m, height ≈2.5–4.2m; net equipment area ≈20m × 4m = 80㎡. Depositor fixed at 2×11m; cooking ≈5×5m (side/upstairs); auto weighing ≥5×10m; drying rooms typically ≥4 × 25㎡ each (depending on gel/time). Contact YT for standardized or custom layout drawings.

Q: Energy requirements?
A: With steam: cooking 25–45kW, steam 50–150L, compressed air 0.8MPa. Electric main unit: ~30kW, air 0.8MPa/30L. Other modules optional. Free customized energy & layout planning available.

Q: Can this line produce other candy types?
A: Yes — core depositing supports hard candy, lollipops, etc., but different products need specific cooking/auxiliaries. Dedicated lines are usually more efficient; contact YT for optimal multi-functional design.

Q: Is depositing servo-based?
A: Yes — fully upgraded servo + screw drive: higher accuracy, lower noise, longer lifespan.

Q: Available mold types?
A: Metal (aluminum/Teflon), silicone (stainless support), 3D/立体 for lollipops/toys/4D shapes.

Q: Custom mold capability?
A: Yes — creative custom designs with sampling to bring your concepts to life.

Q: How to choose molds?
A: Metal is most popular/durable; silicone easier demold but shorter life; starch molds for broader processes (mogul line). Contact for detailed guidance.

Q: Mold fixing/changeover?
A: Screw (secure, slower) or quick-release (faster, shorter accessory life). Composite multi-shape molds reduce changes/costs.

Q: Electrical standards?
A: CE-compliant (Siemens, Schneider); UL/CSA upgrades available.

Q: PLC & programming?
A: Yaskawa/Fuji/Siemens with 100+ recipes, tiered access, reports, AI diagnostics, remote updates (optional).

Q: What differentiates YT?
A: In-depth education, proven recipes, truly client-specific economics — not mass-produced copies.

Q: Factory location?
A: Shanghai, China.

Q: Overseas services?
A: Full installation, commissioning, recipe training to save your R&D time/costs.

Q: Shipping options?
A: Optimal sea/air; door-to-door (e.g., US) with full customs/tariff handling.

Q: Showrooms or visits?
A: Select international showrooms; strongly recommend Shanghai factory visit for hands-on training and discussions.

Q: Food contact safety?
A: Yes — SUS304 food-grade stainless; SUS316 upgrade available.

Q: Warranty?
A: Comprehensive coverage for defects + dedicated support.

Q: Factory design or repairs?
A: Custom layouts, upgrades, and maintenance for other brands — happy to help with problematic existing equipment.

Contact YT today for a customized quote, detailed technical discussion, or complete functional gummy production planning — we’re ready to support your growth in the booming nutraceutical candy market!
